OculusSampleFramework.InteractableTool Class Reference

A tool that can engage interactables. More...

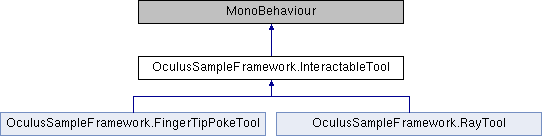

Inheritance diagram for OculusSampleFramework.InteractableTool:

Public Member Functions
List< InteractableCollisionInfo >	GetCurrentIntersectingObjects ()
abstract List< InteractableCollisionInfo >	GetNextIntersectingObjects ()
abstract void	FocusOnInteractable (Interactable focusedInteractable, ColliderZone colliderZone)
	Used to tell the tool to "focus" on a specific object, if focusing is indeed possible given the tool type. More...
abstract void	DeFocus ()
abstract void	Initialize ()
KeyValuePair< Interactable, InteractableCollisionInfo >	GetFirstCurrentCollisionInfo ()
void	ClearAllCurrentCollisionInfos ()
virtual void	UpdateCurrentCollisionsBasedOnDepth ()
	For each intersecting interactable, update meta data to indicate deepest collision only. More...
virtual void	UpdateLatestCollisionData ()
	If our collision information changed per frame, make note of it. Removed, added and remaining objects must get their proper events. More...

Protected Attributes
List< InteractableCollisionInfo >	_currentIntersectingObjects
	List of objects that intersect tool. More...

Properties
Transform	ToolTransform [get]
bool	IsRightHandedTool [get, set]
abstract InteractableToolTags	ToolTags [get]
abstract ToolInputState	ToolInputState [get]
abstract bool	IsFarFieldTool [get]
Vector3	Velocity [get, protected set]
Vector3	InteractionPosition [get, protected set]
	Sometimes we want the position of a tool for stuff like pokes. More...
abstract bool	EnableState [get, set]

Detailed Description

A tool that can engage interactables.

Member Function Documentation

ClearAllCurrentCollisionInfos()

void OculusSampleFramework.InteractableTool.ClearAllCurrentCollisionInfos

(

)

DeFocus()

abstract void OculusSampleFramework.InteractableTool.DeFocus ( )

pure virtual

Implemented in OculusSampleFramework.RayTool, and OculusSampleFramework.FingerTipPokeTool.

FocusOnInteractable()

abstract void OculusSampleFramework.InteractableTool.FocusOnInteractable ( Interactable  focusedInteractable, ColliderZone  colliderZone  )

pure virtual

Used to tell the tool to "focus" on a specific object, if focusing is indeed possible given the tool type.

Parameters

focusedInteractable	Interactable to focus.
colliderZone	Collider zone of interactable.

Implemented in OculusSampleFramework.RayTool, and OculusSampleFramework.FingerTipPokeTool.

GetCurrentIntersectingObjects()

List<InteractableCollisionInfo> OculusSampleFramework.InteractableTool.GetCurrentIntersectingObjects

(

)

GetFirstCurrentCollisionInfo()

KeyValuePair<Interactable, InteractableCollisionInfo> OculusSampleFramework.InteractableTool.GetFirstCurrentCollisionInfo

(

)

GetNextIntersectingObjects()

abstract List<InteractableCollisionInfo> OculusSampleFramework.InteractableTool.GetNextIntersectingObjects ( )

pure virtual

Implemented in OculusSampleFramework.FingerTipPokeTool, and OculusSampleFramework.RayTool.

Initialize()

abstract void OculusSampleFramework.InteractableTool.Initialize ( )

pure virtual

Implemented in OculusSampleFramework.RayTool, and OculusSampleFramework.FingerTipPokeTool.

UpdateCurrentCollisionsBasedOnDepth()

virtual void OculusSampleFramework.InteractableTool.UpdateCurrentCollisionsBasedOnDepth ( )

virtual

For each intersecting interactable, update meta data to indicate deepest collision only.

UpdateLatestCollisionData()

virtual void OculusSampleFramework.InteractableTool.UpdateLatestCollisionData ( )

virtual

If our collision information changed per frame, make note of it. Removed, added and remaining objects must get their proper events.

Member Data Documentation

_currentIntersectingObjects

List<InteractableCollisionInfo> OculusSampleFramework.InteractableTool._currentIntersectingObjects

protected

Initial value:

=
            new List<InteractableCollisionInfo>()

List of objects that intersect tool.

Property Documentation

EnableState

abstract bool OculusSampleFramework.InteractableTool.EnableState

getset

InteractionPosition

Vector3 OculusSampleFramework.InteractableTool.InteractionPosition

getprotected set

Sometimes we want the position of a tool for stuff like pokes.

IsFarFieldTool

abstract bool OculusSampleFramework.InteractableTool.IsFarFieldTool

get

IsRightHandedTool

bool OculusSampleFramework.InteractableTool.IsRightHandedTool

getset

ToolInputState

abstract ToolInputState OculusSampleFramework.InteractableTool.ToolInputState

get

ToolTags

abstract InteractableToolTags OculusSampleFramework.InteractableTool.ToolTags

get

ToolTransform

Transform OculusSampleFramework.InteractableTool.ToolTransform

get

Velocity

Vector3 OculusSampleFramework.InteractableTool.Velocity

getprotected set

---

The documentation for this class was generated from the following file:

• Oculus/SampleFramework/Core/HandsInteraction/Scripts/Tools/InteractableTool.cs
